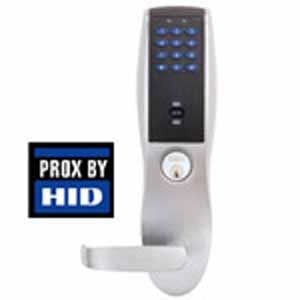

The Profile Series is Sargent`s latest advancement in stand-alone access control with architecturally pleasing escutcheons and various finishes. Depending on the technology selected, the Profile Series offers 500 user (LU - Keypad Only, PA - Proximity Only & PK - Keypad & Proximity) with audit trail (last 1000 events) capability. `Users` can be programmed to actuate the cylindrical lock via pin code and/or proximity credential. The proximity credential offerings include: proximity cards, key fobs and MicroProx Tags. The Profile Series locks (LU, PA and PK versions) are programmed and managed using SofLink Plus w/ Soflink PDP access control software. This software offers the ability to transfer `door file` information directly from the PC or by using commercially purchased PDA (consult factory for compatible models).
Ideally suited for:
• High Security Applications
• Dormitories
• Assisted Living Facilities
• Hospitals
• Retail Buildings
• Meeting Rooms
• Company Health Clubs
• Apartments
• Office Complexes
• Stairwell Doors
Features and Benefits:
• Keypad easily programmable for some features on LU and PK products
• Soflink Plus Software required for programming proximity only (PA), keypad (LU, and keypad/proximity (PK) where time zones are required
• Non-volitile memory
• For use on exterior doors with weather-seal gasket
• 500 different user codes
• 1,000 event transaction history - unlock, egress activation, entry into programming mode, date, time, user number and door number downloaded via Computer or PDA
• One master code - assigns emergency, supervisory and user codes
• One supervisory code - allows temporary lockout of selected users, changes unlock time duration, requests infrared interrogation output, .
adds user codes and unlocks when beyond `low battery` condition
One emergency code - allows entry when deadbolt is thrown
• One time user codes - allows `one time` entry
• Maintained (passage) code - unlock for extended periods of time
• Low battery input indication - four chirps after code entry. Supervisory code unlocks unit beyond low battery condition
• LED`s on unit indicate status - green indicates unlocked; yellow indicates programming mode.
