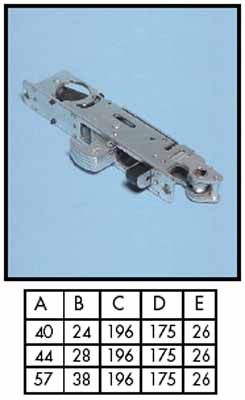

Mechanism: Screw in Cylinder, Case Sizes: 40, 44 & 57 mm, Case Finish: Plated Steel, Forend Finish: Aluminum, Handing: Reversible. Follower: 6.5 mm
Operation:
Hookbolt is operated from either side by key or turn using any standard screw in cylinder or thumb turn (with cam). Reversible latchbolt withdrawn by paddle handle or lever handle from either side.
Features:
• 360 degree turn of keys throws or retracts hookbolt, when unlocked further 120 degrees turn retracts the latch also.
• Latch hookbolt snib located inside bolt cavity, this is accessible only when hookbolt is in thrown position.
• All faceplates and strike plates must be ordered seperately
Notes: A Backset measurement includes faceplate.
