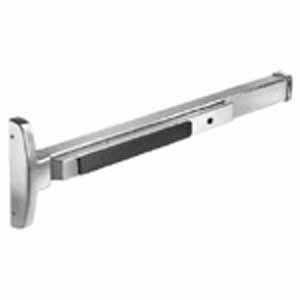

The 12-MD8400 fire rated concealed vertical rod exit device is for metal doors only and has an aesthetically pleasing narrow stile design.
The 12-MD8400 Narrow CVR Exit Device is ideally suited for:
• Full-glass pairs of doors
• Aluminum or HM entrances
• Aesthetic applications
Features and Benefits:
• High impact resistant Lexan touchpad on rail assembly
• Maximum 3 in. (77mm) projection, minimum 2 1/8 in. (54mm) push side
• All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT products
• High security Keso, V10 and Signature Series available
• Rail assemblies and end caps are Brass, Bronze or Stainless Steel
• Stainless steel springs throughout
• Chassis mounted unit construction for easy installation and service.
• Simple lever principle with push type action
• Rail travels in direction of door swing
• Trim is thru bolted
• Electric functions available. Consult Product System Manual
• All exit devices meet ANSI standard 156.3, Grade 1
• All exit devices are UL Listed
• UL Listed to Canadian safety standards
