Hardware & Accessories

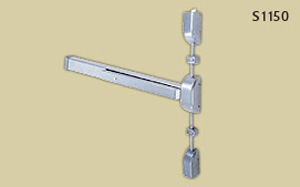

S1150-ARROW

Chassis & Cover:
Non-ferrous alloy

End caps: Metal

Doors:
- 1-3/4' (44.45 mm) thick,
- 3-3/4' for single doors, wood or hollow metal
- 3-1/2' (88.90 mm) minimum stile for double doors

Handing: Reversible

Dogging:
Allen-type key standard, cylinder available.

Top/Bottom Bolts/Latchbolt:
Brass 1/2' (12.7 mm) throw top, 3/4' (19.05 mm) bottom

Throughbolts: Order separately

Rail Assembly: Steel

Rail Size:
- F Rail furnished standard for doors up to 36', can be cut down to accommodate 32' doors.
- E Rail for doors up to 32', can be cut down to accommodate 24' doors.
- G Rails for doors up to 48', can be cut to accommodate 36' doors.

Rods:
90'-extension kits available

Finishes:
AL, BRZ, Powder Coat, LBZ, (sprayed finishes).
