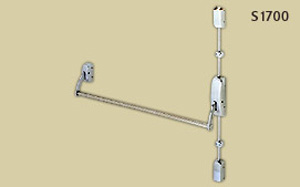

S1700-ARROW

Model: Vertical Rod Exit Device

Chassis:
Pressure formed non-ferrous alloy

Chassis and end covers:
Cold drawn brass, bronze or stainless steel

Door Thickness:
1-3/4' (44.45 mm) standard, available for thick doors

Handing: Handed. Specify LHRB or RHRB

Dogging: Allen type only.

Top/Bottom Bolts: Brass

Latchbolt: N/A

Crossbar Arms:
Forged brass and stainless steel

Crossbar:
1' (25.40 mm) brass, bronze and stainless steel tubing, .062' (1.5875 mm) thick

Crossbar projection:
4-1/2' (114.3 mm) neutral, 2-3/4' (69.85
depressed

Opening Height:
90' (2286.00 mm) standard

Fire Exit Hardware-up to:
- 4` x 7`2' single door
- 8` x 7`2' pairs of doors

Finishes:
US3,US4,US10,US10B,US26,US26D.
