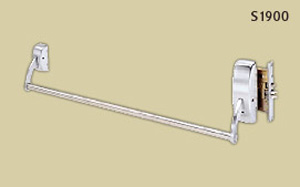

S1900 Mortise - ARROW

Chassis:
Pressure formed non-ferrous alloy

Chassis and end covers:
Cold drawn brass, bronze or stainless steel

Door Thickness:
1-3/4' (44.45 mm) standard, available for thick doors

Handing: Handed. Specify LHRB or RHRB

Dogging: Allen type only.

Top/Bottom Bolts: N/A

Latchbolt:
Brass, 3/4' (19.05 mm) throw

Crossbar arms:
Forged brass and stainless steel

Crossbar:
1' (25.40 mm) brass, bronze and stainless steel tubing, .062' (1.5875 mm) thick

Crossbar projection:
4-1/2' (114.3 mm) neutral, 2-3/4' (69.85 mm) depressed

Opening Height: N/A

Fire Exit Hardware-up to:
- 4` x 7`2' single door
- 8` x 7`2' pairs of doors (with FS1700)

Finishes:
US3,US4,US10,US10B,US26,US26D.
