CCTV

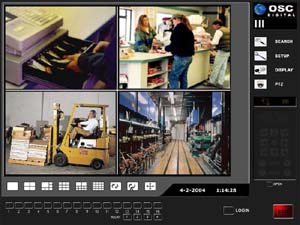

OSC 9600 Series 8 Channel

120 FPS Commercial Surveillance Digital Video Recorder

System Specifications:
•  Pentium 4 Processor 2.6 GHZ
•  8 Channel 120 FPS Video
•  3U Industrial Rackmount Chassis
•  High Resolution
320 X 240, 640 X 240 & 640 X 480 Video Modes
•  Advanced Software Package Version 4
•  256 MB DDR Memory
•  120 GB Western Digital Hard Drive
•  Black 52 X 24 X 52 CD-RW Drive
•  64 MB Nvidia MX 440 AGP Video Card
•  Windows 2000
•  Genuine Intel 845 Socket Motherboard
•  Intel Chipset
•  10/100 Fast Ethernet Card
•  System User Guide Included
•  Remote Internet Software Included


Key Features:

•  Advanced Software Package Version 4
•  Smart Search™ Technology
•  Two-way voice communication with audio recording
•  Ability to hide selected cameras from view while recording
•  Independent camera programming for video compression and type of recording method (motion or continuous)
•  User adjustable camera frame rate controls
•  J-PEG and M-PEG 4 video compression
•  Watermarking for law enforcement grade video authentication
•  320 X 240 and 640 X 480 screen resolution
•  Time & date stamping on video playback and video backup
•  Software zoom & image enhancement functions
•  Programmable video backup & automatic scheduling
•  422 / RS 232 control outputs I/O Controls include 16 TTL inputs and 4 sensor outputs - time relay
•  Alarm system compatibility for external sensor inputs
•  Pan / Tilt / Zoom controls for Pelco and other cameras
•  Single and multi-location remote viewing
•  Sensitivity controls for motion detection recording
•  Remote search, recording and playback
•  Selectable camera zone coverage with motion detection
•  Remote server configuration
•  Unlimited remote users with web browser
•  16 camera simultaneous remote viewing by web browser and remote software.
•  Multi-level password administration
•  Virtual keyboard & mouse ability
•  Archive selected footage direct to CD-R
•  Cash register integration
•  Programmable alert settings
•  E-Mail event notification
•  Dynamic IP address support
•  Wireless PDA Handheld Viewing
•  AVI file save & more
