Detailed Description:

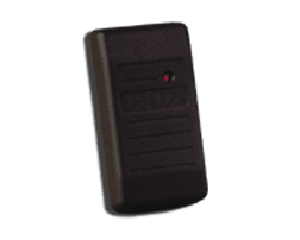

The PR-PROX proximity reader has a small, attractive design and all of the electronic components are potted making it ideal for both indoor and outdoor applications. The PR-PROX reader accepts 5-16 volts, meeting most voltage requirements. It is available with either Wiegand interface or clock-and-data magnetic stripe interface. The 5-volt capability allows existing swipe-type access control installaitons to be easily upgraded to proximity technology simply by changing the existing reader heads and cards. This reader offers high reliability, consistent read range characteristics, and low power consumption in a single. The PR-PROX is designed for mounting directly on metal with no change in read range performance. PR-PROX interfaces with all existing Wiegand protocol access control systems.
Features:
• Proximity reader operates on low power for extended operation
• Reader is designed to provide protection against reader tampering
• Sealed in a rugged, weatherized polycarbonate enclosure to withstand harsh environments
• An LED indicator on the reader visually confirms a successful read
• No LED control beeper
• Designed to be unobtrusive and to mount directly on metal
• Recognizes over 137 billion unique codes for added security
Specifications:
• Read Range 1.2' to 3.75' (3 cm to 9.5 cm)
• Dimensions 3.135' x 1.7' x .510' (7.96 cm x 4.3 cm x 1.3 cm)
• Power Supply 4.75 VDC - 16 VDC
• Peak Current 60mA
• Average Current 35mA (maximum mounted on metal) 22mA (maximum non-metalic mounting)
• Operating Temperature -22 to 150° F (-30 to 65° C)
• Operating Humidity 5% to 95% non-condensing
• Enclosure Material UL listed Lexan Polycarbonate
