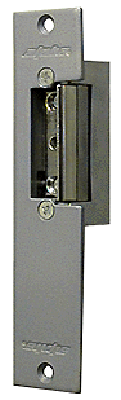

The DO-001A MightySlim is designed to be used primarily in wooden doorframes. Under certain circumstances, the DO-001A can be used in hollow aluminum and hollow metal doorframes. The DO-001A MightySlim can be used in right-handed or left-handed installations, simply by turning the door strike upside down, during installation. When used with a 14-24VAC input, the DO-001A makes a buzzing sound, when activated.
When used with a 14-24VDC input, the DO-001A activates silently. Our unique screw-adjustable latch mechanism makes lock tongue alignment quick and easy.
FEATURES:
• Operates on 14-24VAC or 14-24VDC standard
• Buzzes on AC operation and is silent for DC operation
• Reversible for right-handed or left-handed installations
• Can be used with wooden or hollow metal door frames
• Requires only 1.125' deep door frame opening
• Has adjustable latch for easy tongue alignment
• Non fail-safe operation standard
• Positive Screw Terminal connections
• Satin Grey Painted Steel Faceplate
SPECIFICATIONS:
Faceplate Dimensions:1.25'W (32mm) x 5.875'H (149mm).
Opening Dimensions: 0.80'W (20mm) x 2.625'H (67mm) x 1.125'D (29mm).
